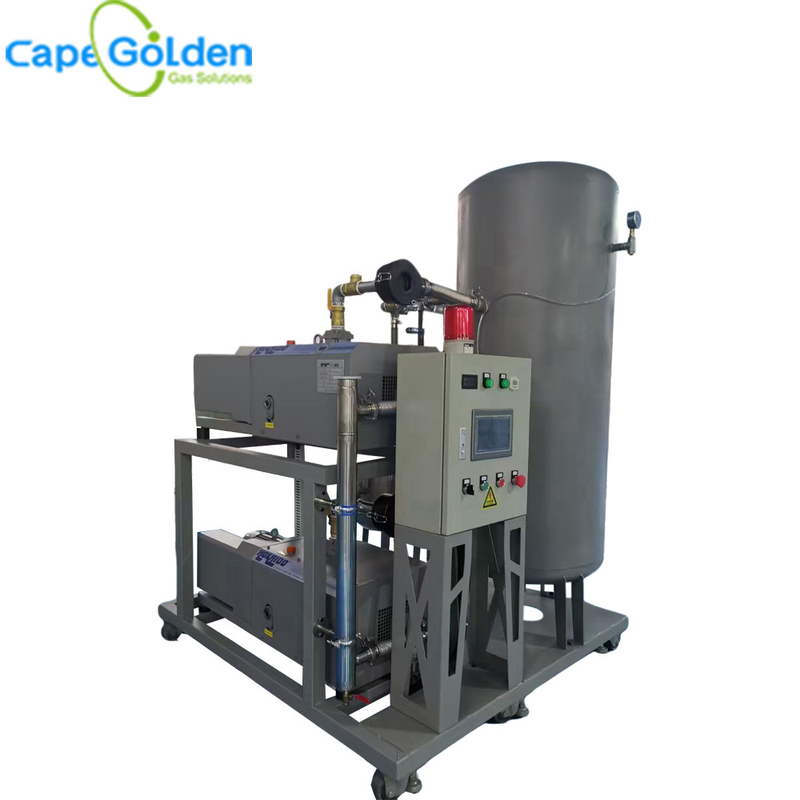

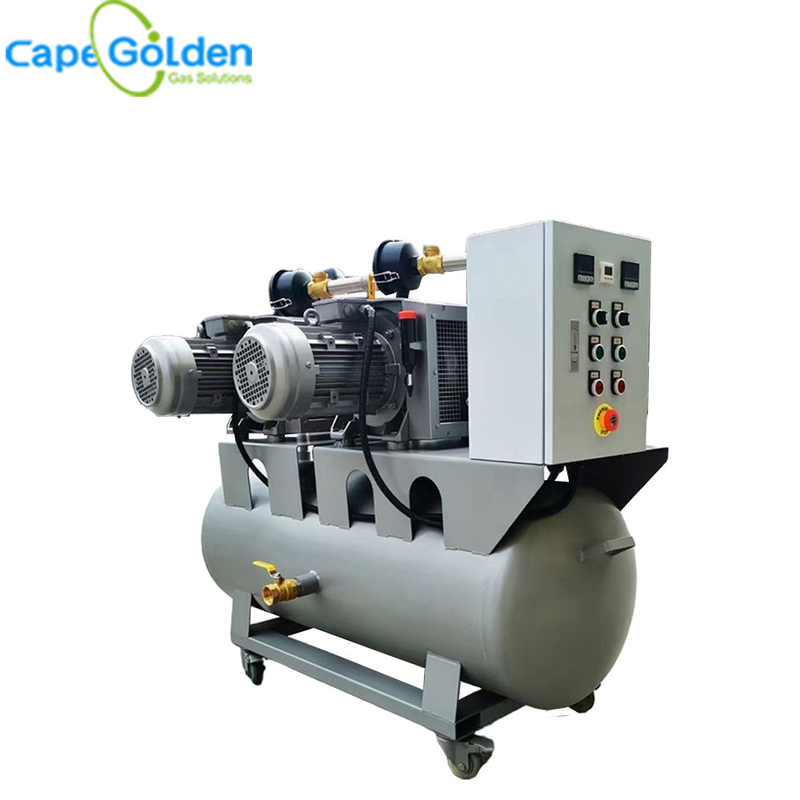

Oil Free Medical Gas Vacuum System 220V 380V 0.5-500mbar 4-1300m3/h
-
High Light
Medical Vacuum Pump System 220V 380V
,medical gas vacuum system 500mbar
,medical gas vacuum system 1300m3/h
-
StructureOil Free Pump
-
Pressure0.02-0.07mpa
-
StructureVacuum System
-
TheoryVacuum Pump
-
Voltage220V/380V
-
WarrantyOne Year
-
Horsepower0.75-20kw
-
Power SourceElectric
-
Place of OriginBeiJing
-
Brand Namecape golden
-
CertificationCE ISO
-
Model NumberCAVS-90
-
Minimum Order Quantity1
-
Delivery Time40 day
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram
Oil Free Medical Gas Vacuum System 220V 380V 0.5-500mbar 4-1300m3/h
Medical Gases and Vacuum Systems in Hospitals
Product Description
Medical gases and vacuum systems are used in hospitals to provide safe and cost-effective source of medical gases for the clinical applications.
Overview
Medical gases are used for patient's healthcare in different ways. In the early of 1950s, healthcare providers recognised the hazards of using heavy high pressure cylinders of medical gases. Instead, medical gases and vacuum systems are provided by medical gases pipeline system (MGPS). It is safe, permanent and cost-effective mean of provision. In general, medical gases are specific gases that are separated from the air individually for various medical applications.
Overview
Medical gases are used for patient's healthcare in different ways. In the early of 1950s, healthcare providers recognised the hazards of using heavy high pressure cylinders of medical gases. Instead, medical gases and vacuum systems are provided by medical gases pipeline system (MGPS). It is safe, permanent and cost-effective mean of provision. In general, medical gases are specific gases that are separated from the air individually for various medical applications.
Technical Parameters
|
Flow Rate
|
4-1300m3/h (per pump)
|
|
Vacuum Range
|
0.5-500mbar (absolute pressure)
|
|
Suction Volume
|
25-630m3/h
|
|
Motor Power
|
0.75-20KW
|
|
Terminal Negative Pressure Value
|
adjustable within the range of 0.02mpa-0.07mpa
|
|
Terminal Suction Rate
|
≥30L/min
|
|
System Leakage Rate per Hour
|
≤1%
|
System Features
High vacuum, stable performance and long service life
No access to water Compact structure, economic space occupation
Simple operation, easy maintenance, less noise
Multiple units can be realized by PLC joint control
GDMS system can be connected
Comply with European CE EN737-3 standard
