Oxygen Analyzer for Concentrator CE ISO
,Oxygen Analyzer for Concentrator CI-6600
,oxygen concentrator purity analyzer Real Time Analysis
-
Sample Gas Flow150~300ml/mim
-
Accuracy±2% F.S
-
Ambient Temp-10℃~+50℃
-
Stability<±1%.FS (168h)
-
Ambient Humidity<80%RH
-
Signal Output4~20mA
-
Measure Range10ppm~21%, 100ppm~21%, 1000ppm~21% O2
-
Range10.00~96.00% O2·
-
Place of OriginBeiJing
-
Brand Namecape golden
-
CertificationCE ISO
-
Model NumberCI-6600
-
Minimum Order Quantity1
-
Delivery Time15 day
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram
1000ppm~21% O2 Oxygen Analyzer For Concentrator Real Time Analysis CI-6600

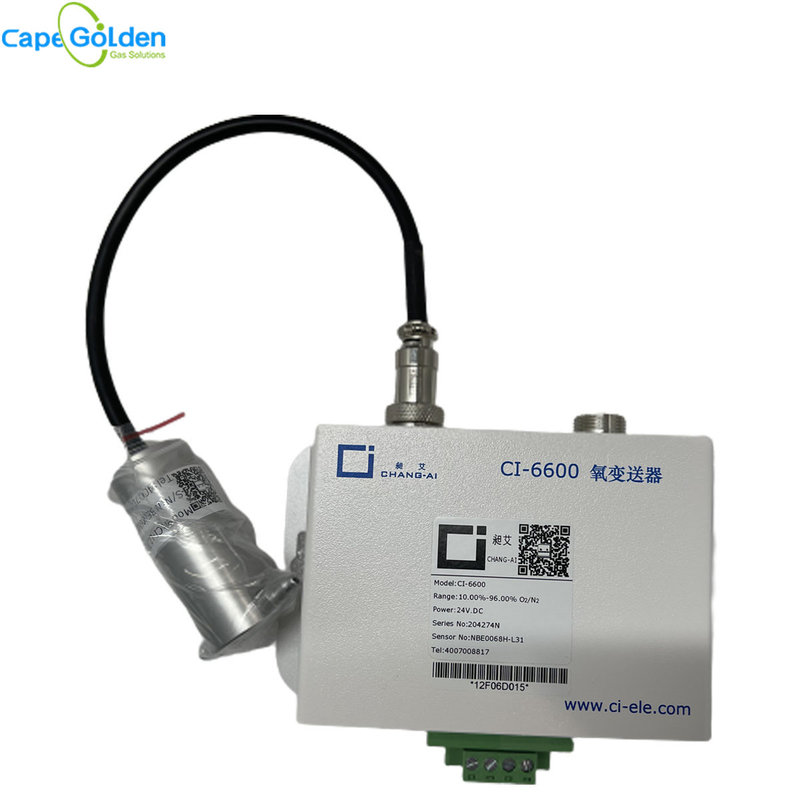

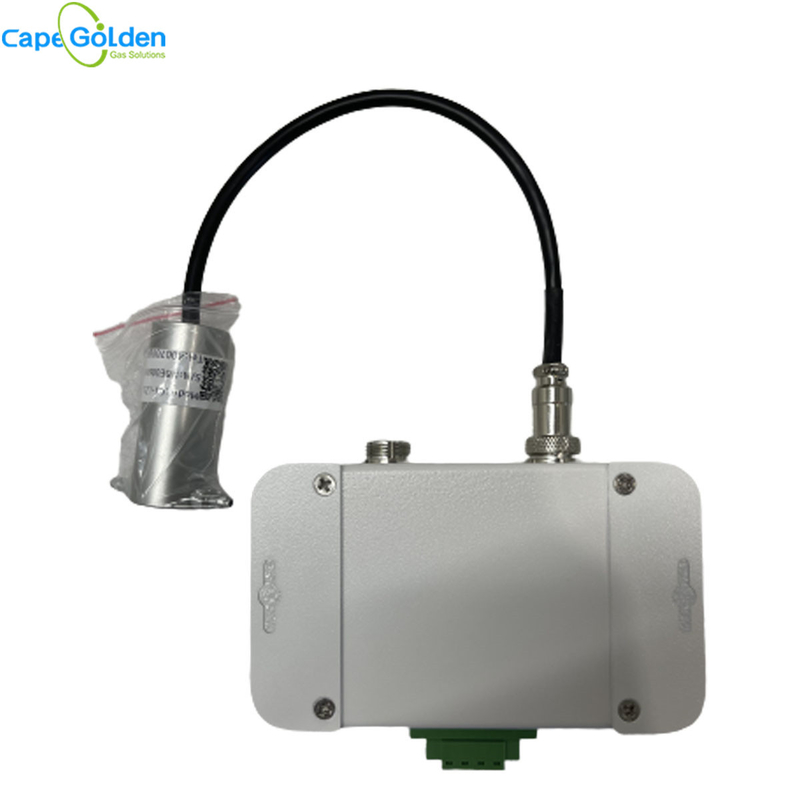

Oxygen Analyzer for Concentrator Real Time Analysis CI-6600
CI-6600 trace O2 analyzer is with electrochemical principle and capable of O2 purity measurement range 0-10/100/1000ppm, 1%.
Features
- 240×128 LCD display oxygen concentration and other settings;
- Isolated 4-20mA signal output, with 0-100mV, 0-1V and 0-10V as options;
- Easy to replace sensor;
- Standard RS232 two-way communication port;
- Two way SPST alarms;
- Over pressure protection function and over purity range protection function;
- Automatic data storage in a certain interval time, and browsing data at any time
Technical Specifications
Applications
Air separation, Gases production, Protection gas for semi-conductors industry, Wave soldering & reflow soldering, Food production, Petro-chemical, and other oxygen purity detection in inert and hydrocarbon gas mixtures.
